Characteristic:
The
average pressure fans series AVA MR are studied
for the extraction of the exhaust gas of motor
vehicles. The housing is in sheet steel completely
stove enamelled. The impeller is in galvanized
steel, spark resistant with backward curved blade.Each
impeller is balanced. The engine i s compliant
with CEI specifications p rotection IP 5 5. All
the fans are originally three phase 220/380V
50 Hz. Single phase engines 220V 50Hz have to be
expressly required; (for single phase fans an extra
charge of 10%
on net price is required).
Features:
Average
pressure backward inclined vane fan, suitable for
high dust air content. Suction of exhaust
gasses. Suitable for complex installations with
high pressure drop;
- If the fan is mounted inside the building it
is recommended the use of the
proper soundproof box INS.
Model
|
Power
|
AMP.
|
Noise
|
Diameter
|

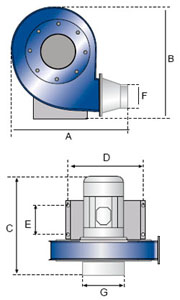

Dimensions
|
Weight
|
HP
|
KW
|
220
V
|
380
V
|
dBa
|
Vhod
|
Izhod
|
A
|
B
|
C
|
D
|
E
|
Kg
|
| AVA-MR1 |
1,00 |
0,75 |
3,10 |
1,90 |
68 |
160 |
160 |
530 |
585 |
375 |
215 |
125 |
31,00 |
| AVA-MR1,5 |
1,50 |
1,12 |
4,50 |
2,60 |
69 |
160 |
160 |
530 |
585 |
375 |
215 |
125 |
33,00 |
| AVA-MR2 |
2,00 |
1,50 |
5,70 |
3,40 |
71 |
180 |
180 |
580 |
660 |
400 |
245 |
137 |
38,00 |
| AVA-MR3 |
3,00 |
2,20 |
8,30 |
5,00 |
72 |
180 |
180 |
580 |
660 |
425 |
245 |
137 |
41,00 |
| AVA-MR4 |
4,00 |
3,00 |
11,30 |
6,20 |
75 |
200 |
200 |
650
|
710
|
470
|
300
|
200
|
70,00
|
| AVA-MR5,5 |
5,50 |
4,00 |
15,40 |
8,20 |
76 |
250 |
250 |
650 |
710 |
520 |
300 |
200 |
75,00 |
| AVA-MR7,5 |
7,50 |
5,50 |
20,60 |
12,00 |
77 |
250 |
250 |
735 |
800 |
570 |
360 |
250 |
100,00 |
|
