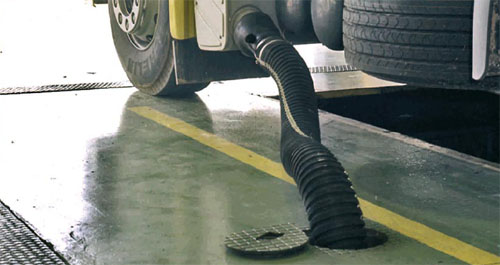

| Floor
exhaust gas suction system PAG 180/200 |
|
| |
The
underground exhaust gas extraction systems are realised
in two different solution: underground extraction
hose or external extraction hose.Components for systems
with underground hose:
- aluminium well (PAG-180 – PAG-200);
- underground bend (CAS-100 – CAS-200);
- crushproof hose for heavy-duty use (TOP-75/100/125
length 3 or 6 m.);
- penetration guide (PT-75/100/125) and neoprene
nozzle (BG) or metal nozzle (BN);
Components for systems with external hose:
- aluminium well (PAG-180);
- upper bend (CPS-75/100/125);
- crushproof hose for heavy-duty use ( TOP-75/100/125
length 3 or 6 m )
N.B.: It is raccomanded the use of an inspection
well in RC (Reinforced Concrete) between the PVC
extraction duct and the galvanized extraction line
to the fan. |
|
