Characteristic:
Mechanical spring recoil hose reels are
composed of stove enamelled metal sheet
and can be equipped with crushproof hose
ø from 75 mm to 150 mm. Length ranging
from 5 m to 15 m according to the diameter.

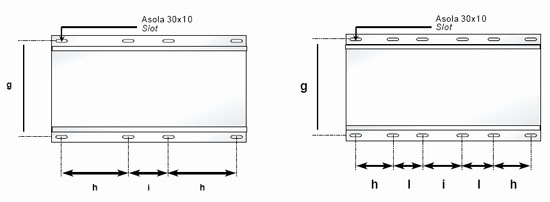

All our hose reels can be mounted on the
aluminium rail either 170 or 230, through a
suitable sliding crab. Hose reels series CAR
are exclusively studied to be mounted on the aluminium rail and are the most suitable
solution for smaller size workshops. Hose
reels series ARC, ARL and MAX can be

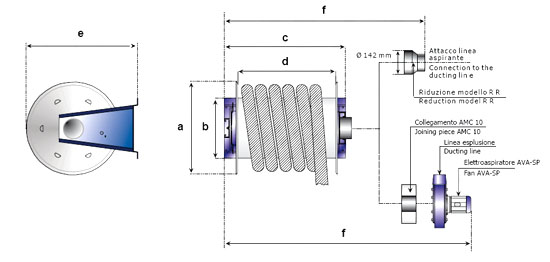

coupled with cast aluminium fans series
AVA and can be equipped with the DPA-
10-UN device to allow the automatic
start and stop of the fans. Our range of
hose reels can be supplied with internal
motorization kit either with cable control
(..T) or remote control (..R).

Tehnical data:
Model ARC, hose reel width 635 mm.
