Characteristic:

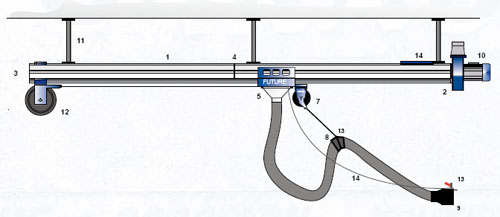

This installation is specific for car and truck testing lines. Trolley System is composed by a self
supporting extruded aluminium rail with sliding crab, balancer, hose and neoprene nozzle with
clamp.The sliding crab equipped with teflon bearing wheels is connected to a recovery balancer
for its automatic return to the starting position. The sheet steel fan is directly coupled at the
aluminium rail through connecting flange. Our technical dept. recommends to mount the trolley
system not higher than 4 meters over the ground. The Trolley System could be equipped with:
- automatic release system for nozzle
- quick connector for hose.
